2023 Caymas 28 HB

The Caymas 28HB is a perfect combination of pro-level fishability, distinctive contemporary styling, and family-focused comfort. Performance starts with a Michael Peters Stepped-Vee Ventilated Tunnel Hull. This patented hull delivers speed, fuel efficiency, and a precise and dry ride. Serious anglers will appreciate the 28HB’s huge nonskid casting deck, massive built-in storage compartments for tackle and gear, 35 gallon aerated live wells and baitwell, backlit console display and a 120-gallon fuel tank for maximum range. Family and friends who hop aboard for the day of fun will love the 28HB cushioned seating at bow and stern, extra elbow room afforded by the boat’s 9’4” beam, the combination of high freeboard and deep gunnels for added safety and security, a rocking stereo system and a “butter-soft’ ride. See for yourself how the Caymas 28HP enjoys the best marine fit and finish utilizing the highest quality marine hardware and craftsmanship. The Caymas 28HB can be rigged with a Yamaha, Mercury, Suzuki or Evinrude outboard up to 425 horsepower.

Basic Boat Info

Make: Caymas
Model: 28 HB
Year: 2023
Condition: New
Category: Power
Construction: Composite

Dimensions

Length: 27'7 ft
Beam: 9'4 ft
Min Draft: 1'4 ft
Bridge Clearance: 8'1 ft
Free Board: 2 ft
Dry Weight: 4300 lb
Deadrise: 18.5 deg

Tanks

Fuel Tank Capacity: 120 gal
Water Tank Capacity: 8 gal

Other

Boat Class: Saltwater Fishing, Center Consoles
Cockpit
  • 4 – Horizontal Rod System
  • 2 – Lockable Bow Storage Lockers - Rod Storage - Port and Starboard
  • Deck Cover Boards
  • LED Courtesy and Compartment Lights
  • Raw Water Washdown Station Conveniently Located Under Gunwale
  • Stainless Steel Lid-Latches with Stainless Steel Striker Plates
  • Non-Skid Self-Bailing Cockpit
  • Recessed Voyager Compass
Console/Helm
  • Custom fully finished fiberglass console with large access door
  • Custom console with recessed footrest and storage box
  • Porta Potti
  • Edson® stainless steel comfort grip steering wheel with power knob and tilt steering
  • SeaStar hydraulic steering
  • Eight (8) stainless steel vertical console rod holders
  • Convenient USB port in console storage box
  • Pro series color-matched fiberglass leaning post with custom flip-up bolster seats and backrest, four (4) rod holders and two
    (2) stainless steel lighted cup holders
  • Front of console has built-in cooler with seat cushion and backrest
  • 12 Volt accessory plug

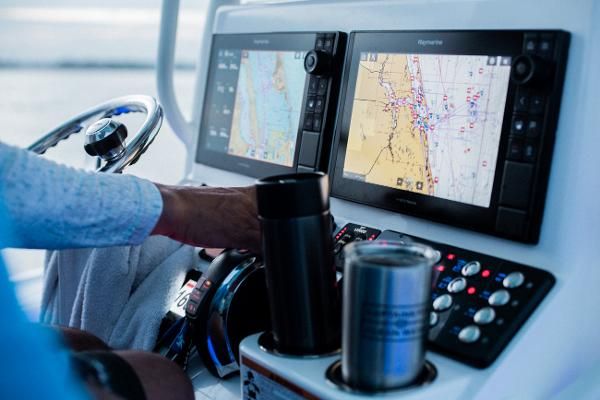

  • Dash accommodates two (2) 12” screens
  • Voyager compass surrounded by custom Surf Turf mat
  • Surf Turf mat on helm step pads and top of cooler (if equipped)
  • Surf Turf flooring inside of console
  • Tempered glass windshield with powder coated frame
  • Stainless steel console grab rail
Construction
  • Patented Michael Peters double Stepped V Ventilated Tunnel (SVVT) running surface
  • Limited lifetime hull warranty
  • Three (3) year limited component warranty
  • 100% composite construction—no wood
  • Tri-core composite transom
  • High performance resin and barrier coat
  • Hand-laid fiberglass hull
  • Zero-flex fully foamed finished stringer grid system with integrated chase tubes
  • Premium gelcoat, Pure White, with UV inhibitors
  • Fuel tank 5052 aluminum
  • Plumbing and electrical systems tank tested
Deck and Hull
  • Seven (7) 8″ through-bolted stainless steel pull-up cleats
  • Four (4) gunwale mounted stainless steel rod holders
  • Two (2) custom swim platforms; one (1) with boarding ladder
  • Aluminum backing plates glassed in for seats, cleats, rails, rod holders and tops
  • Anchor locker with integrated anchor holder
  • Completely finished fiberglass lids, boxes, doors, and bilge area
  • Heavy duty rub rail with stainless steel insert
  • 4″ jackplate
Boat Systems
  • 35 gal. starboard-side transom livewell with 800 gph pump and high-speed pick-up
  • Central manifold drain system with shut-off valves
  • 4 gpm raw water washdown pump
  • Two (2) 1500 gph bilge pumps (one (1) automatic, one (1) manual)
  • Mid-ship 500 gph automatic pump
  • Large fish box with macerator pump
  • Six-gauge trolling motor wiring harness
  • Battery switch
  • Circuit breaker protected tinned wiring
  • Electric trim tabs with LED indicators

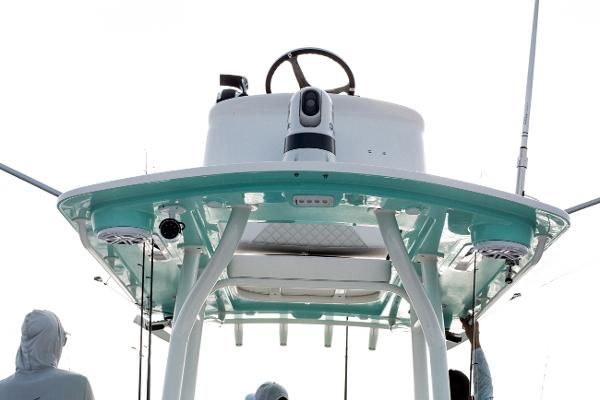

  • LED anchor light and navigation lights integrated into hard top
  • LED cockpit courtesy lights
  • LED interior console lights
  • LED compartment lights
  • LED livewell lights
  • LED under gunwale lights
  • Factory installed outboard engine of choice with engine gauge
  • Stainless steel push-button switches with backlit LED indicator lights
  • Trolling motor battery trays (36v)
  • AGM engine battery
